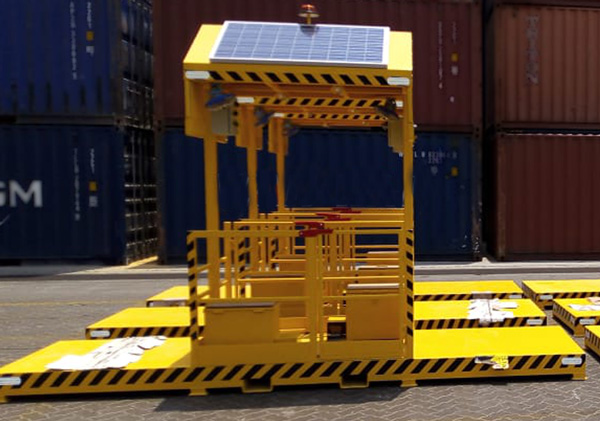

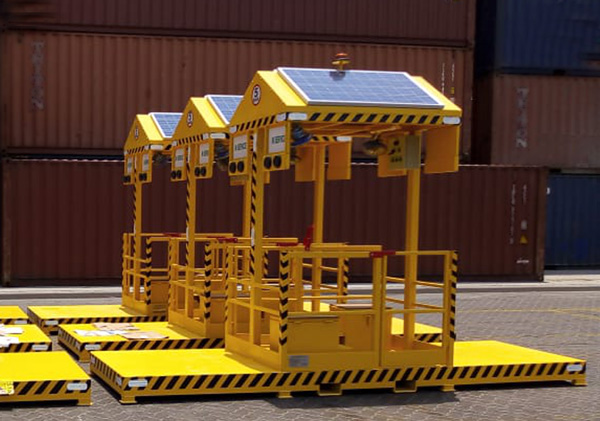

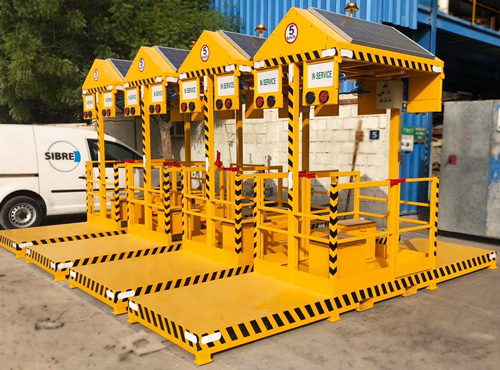

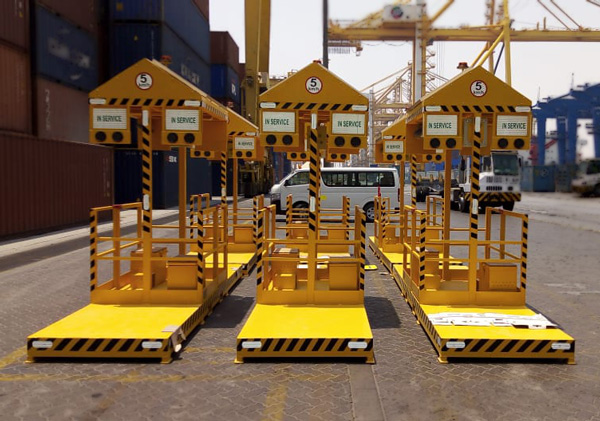

Across the many Container Terminal activities in the quay area , Workers are constantly interacting with multiple Containers & Terminal Tractors during the pinning activities . Our Solar powered pinning station establishes a safe workspace with a self powered system to ease the operations at all times & to improve the Safety of the workers .

The Most Important factor to be considered for discharging /Loading operation is in Quay side is to set a safe and secure pinning station . Pinning station is an area in quay side where a truck with container drives to a pinning station & pin in the twist lock of the container for the vessel loading operation . The twist lock of the container discharged from the vessel placed on the truck is unpinned in the pinning station before moving towards the designated stack .

CONTACT PERSON

Bradley Dsouza

Address : Po Box 15130, Ajman, UAE

Email : [email protected]

Contact : 00 971 50 676 5137

Mechanical Design Key Features :

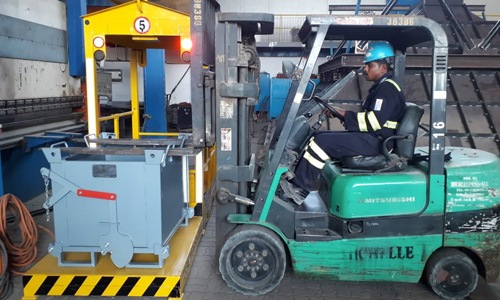

  • Provision for fork lift Lifting points
  • Storage area for twist lock bins on either sides .
  • Maintenance free design.
  • Robust design and structure
  • Loading bearing capacity of 2 tons on each side at the twist lock bin storage area.
  • Easy to handle the container twist locks bins placed on either side of pinning station .
  • Time and cost saving design which enables 2 operators to operate at a given time .
  • Innovative seat design i.e can be used as a tool storage bin
  • Water resistant ,highly ventilated & easily accessible battery storage bin .
  • Robust ceiling capable of withstanding falling objects .
  • Inward opening doors with locks which acts as a safety barrier.
  • In Service / Out service sliding doors . Manufactured by 3M Reflectives.
  • 3M Corner reflectors for low visibility signage.

Electrical Design Key Features :

  • Solar powered with a backup life of 24 hour .

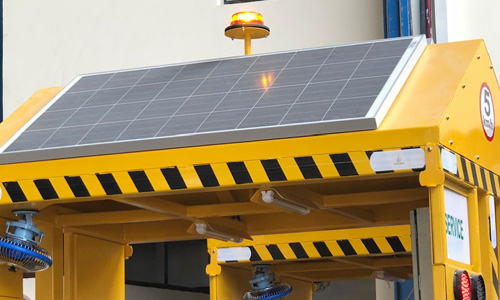

  • Twin panel design to maximize charging capacity .
  • IP65 Multi featured becon .

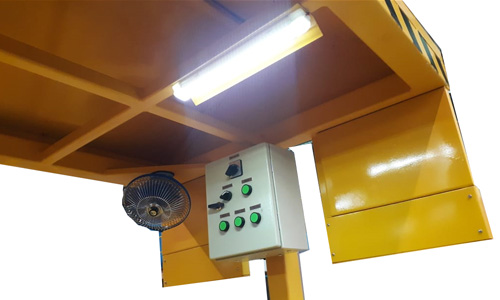

  • IP65 Rated Power Distribution Unit.
  • Industrial Switches ( Make : Schneider )
  • Fans Provision for ventilation
  • Twin Cabin lights with 22 lumens for low light / Night operations.
  • Red & Green Signage light for Container tractor driver signals which is operated by the operator via foot switch .
