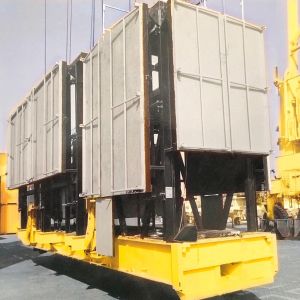

Hydraulic folding platform

Hydraulic foldable platform is a useful invention for busy terminals to carry out maintenance, repairs, as well as accident damage repairs of STS, RMG and RTG cranes.

Accidents and mishaps occur during busy Container Terminal activities in the quay area.   A typical example:

 Crane activities commence once the ship berthing is completed. At the beginning of the operation, STS crane can travel any side of the ship during low tide. After few hours’ ship derrick crane hits festoon I beam while travelling caused due to high tide. It is a long procedure to repair the damaged festoon I beam by erecting scaffolding, which could take weeks. Time and cost of the repair is high.

In the above situation the foldable platform could be a better solution.

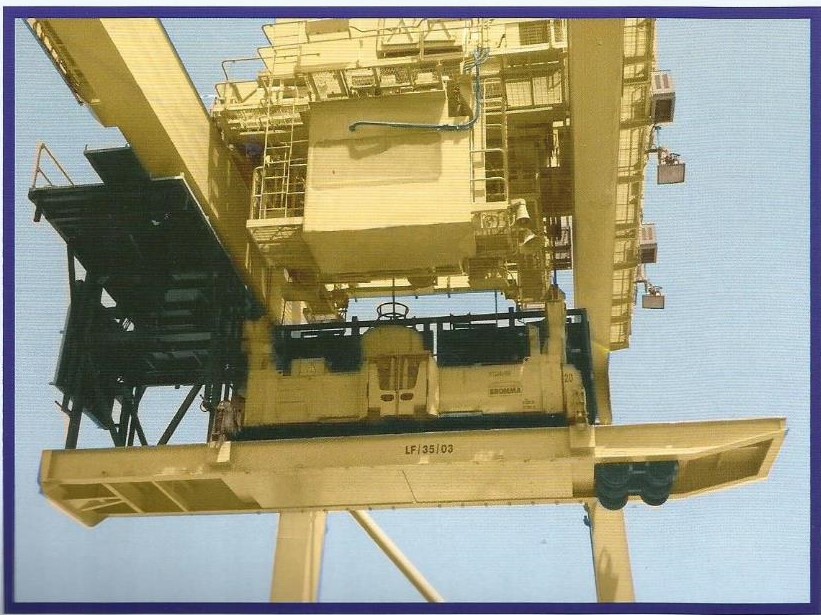

The damaged festoon beam can be accessed and repaired with ease by attaching folding platform to the spreader and by hoisting and moving the trolley to the damaged area. Repairs can be completed within a day and crane released back to operation.

Another cost saving factor of the foldable platform, is that it can be used on ship to shore cranes RMG and RTGS for periodic maintenance and repair works.

Hydraulic Foldable Platform is a time and cost saving product which every terminal should consider to support their operation and

maintenance needs.

Design Key Features :

• Provision for moving by terminal tractor.
• Easy foldable system for transporting purpose.
• Maintenance free design.
• Robust design and structure
• Multiple use for following jobs
• Operator cabin  external maintenance, repairs , Cleaning & accident repairs
• Flood lights maintenance under girder, maintenance, repairs or modification.
• Festoon system maintenance, repair, renewing & accident repair.
• Landside & boom side girder inspection, maintenance& accident repair.
• Landside & sea side crane leg inspection, accident repair.
• Trolley inspection, maintenance & repairs.
• Easy to handle with spreaders.
• Time and cost saving product.
• Outward opening doors with locks & foldable handrails.
• Moveable additional platform to inspect all positions of crane legs.
• 3M Corner reflectors for low visibility signage.

Hydraulic & electrical components :

• Foldable platforms with locking system
• Hydraulic power pack to lift & lower the platform. .
• Double acting cylinders
• Individual manual control valve to operate desired platform
• Generator set to provide electricity for platform operation & maintenance work.
• Electrical control box.
• Industrial Switches ( Make : Schneider )
• Power points for welding machine & hand tools.
• Proper lightings system to use during nights.
